What was done
A VST2 instrument for Akai MPC devices that uses the Machinedrum’s DSP and OS code, with sample-by-sample checks against an emulator and hardware testing.

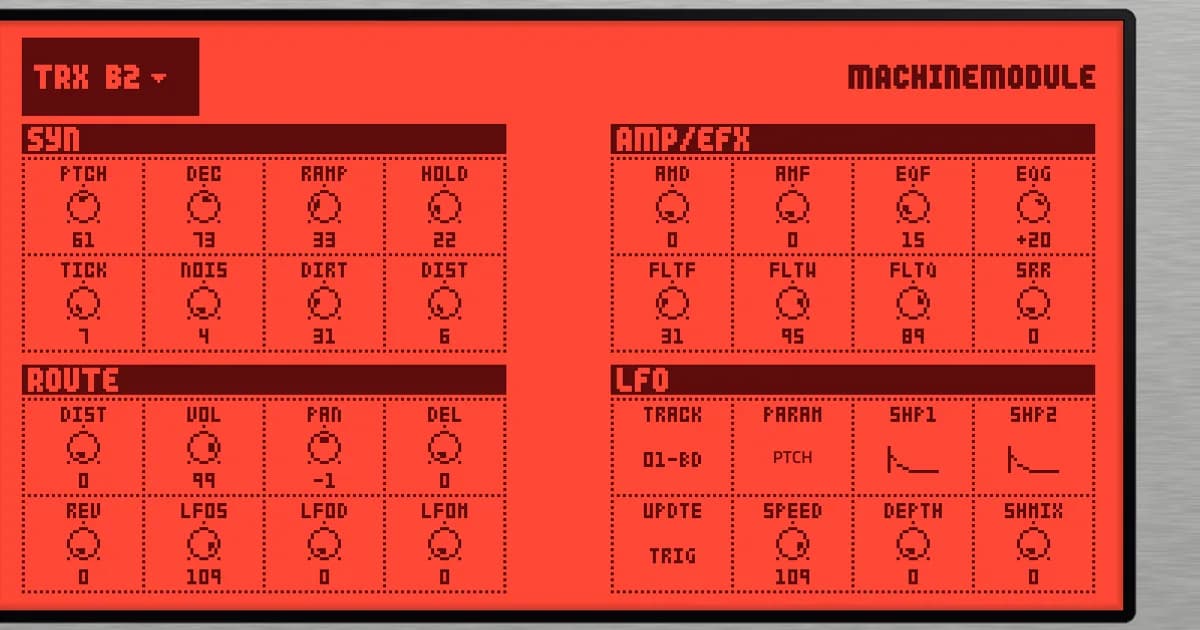

Machinemodule adapts the Elektron Machinedrum SPS-1 UW sound engine into a VST2 instrument for standalone Akai MPC hardware. The project uses the Machinedrum's own DSP code and its machine, LFO, and mixer calculations, exposing the 16 tracks through one plugin instance. A touchscreen skin and Q-Link controls provide an interface designed for MPC use.
The repository reports that the instrument can play, save, and reload with a project, and that it has been tested on an Akai Force running MPC OS 3.9.1. It notes a compatibility difference on MPC OS 2.x: the plugin can load and play from Q-Links, but the touchscreen page is not available there yet. The Machinedrum's master reverb and delay are not included as built-in effects; the project instead documents separate output taps.
There is no downloadable plugin build because the installation must be built using the user's own Machinedrum firmware. The repository provides a build script and describes the required files. It does not distribute Elektron firmware or other Elektron assets and is not affiliated with Elektron.
Reproduce it
Build the installer using the repository script and your own Machinedrum OS and firmware files.
